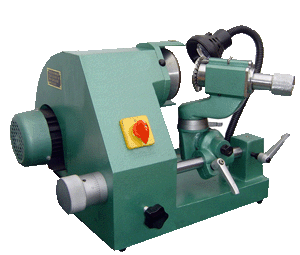

DJTOL-40A     For high precision work and better efficiency , it is desirable to sharpen your cutters by cutter grinder than simply by hand. The DJTOL-40Acutter grinder is specially designed for this purpose. Other than surface grinding the cutter grinder can sharpen any cutter to whatever shape you want your cutter to be. Highly efficient, save and easy to handle will surely solve the problem of sharpening cutters for you and thus improve your productivity.

	1	Grinding wheel	Diameter	-22602100mm
			Thickness	50mm
			Hole diameter	-2260220mm
	2		Spindle speed	5200rpm
	3		Collet capacity	-226023-16mm
	4		Longitudinal traverse of index head carrier	140mm
	5		Fine longitudinal adjustment travel of index head carrier	18mm
	6		Fine longitudinal adjustment travel of index head carrier	6mm
	7		Taper angle	0-180-24093
	8		Negative taper angle	0-52-24093
	9		Relief angle	0-44-24093
	10		Power	0.30kw
			Speed	2810rrmp
			Voltage Single-phase	220v
			Frequency	50HZ
	11		Gross weight (kg)	55kg
			Packing dimensions (cm)	48x39x36.5cm
	13		Grinding wheel PA80
			Wheel dresser with diamond	1set
			Drive belt	1pcs
			Tools	1set
		standard accessories	Diamond Wheel 320#	1pcs
			Diamond Pen 0.5 kela	1pcs
			Collect	3.175,4,6
			Lamp	1set
